Centene Hanley Tower

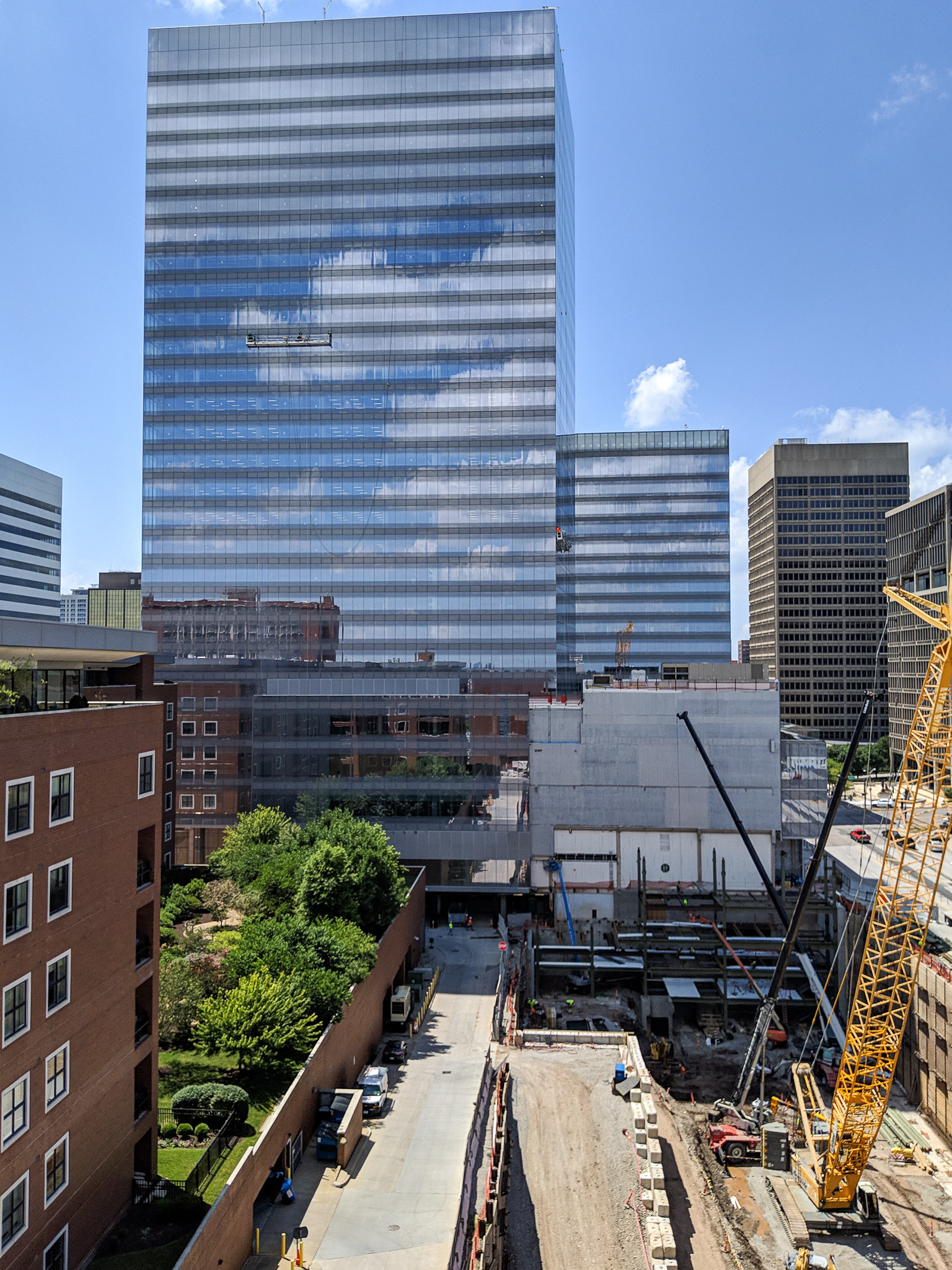

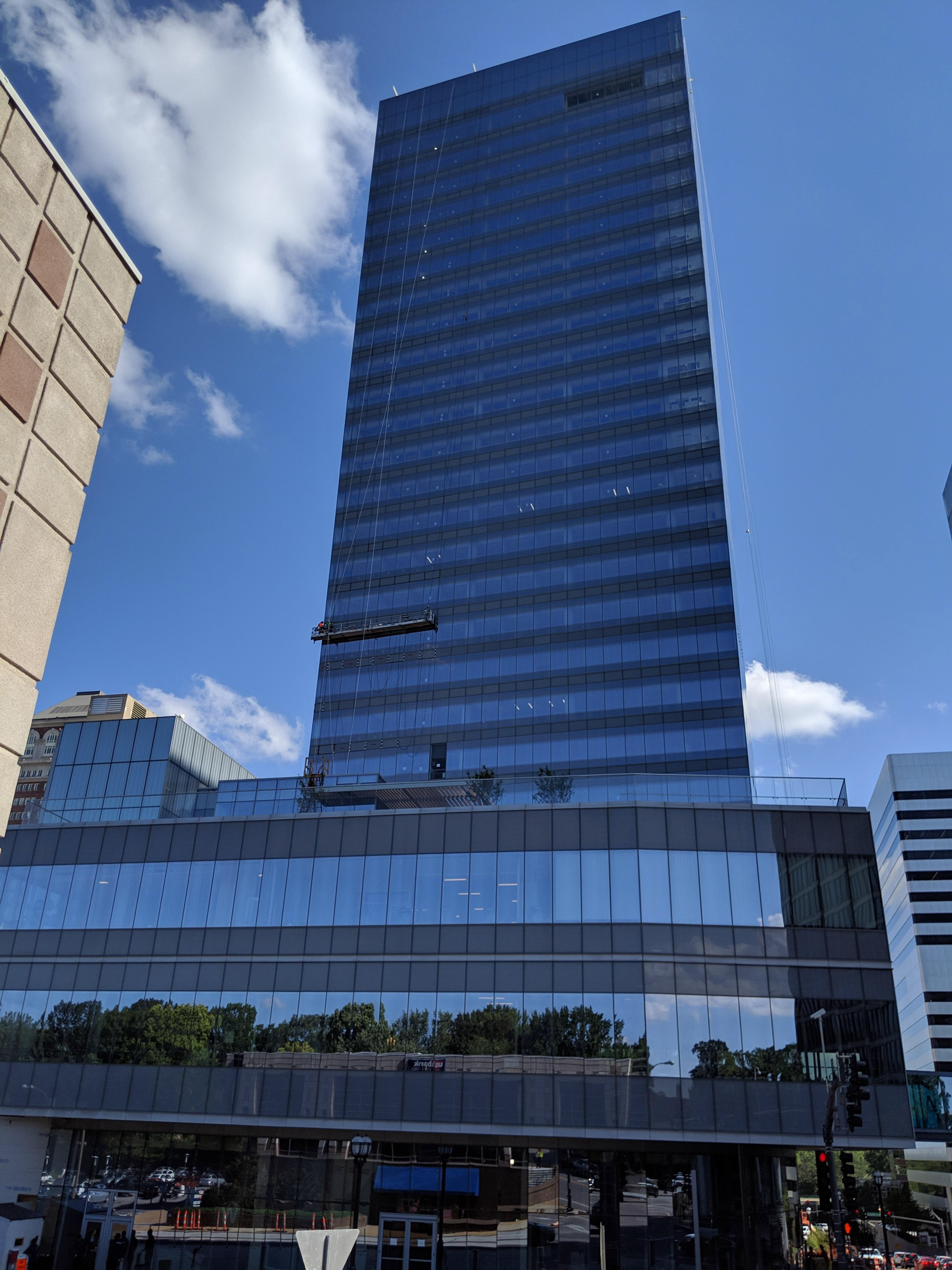

Centene Corporations Hanley Tower is located in Clayton, MO within Centene's Urban Campus. Centene Hanley Tower is a 32-story office tower with an attached 1,700 space parking garage, pedestrian bridge linking to Centene Plaza.

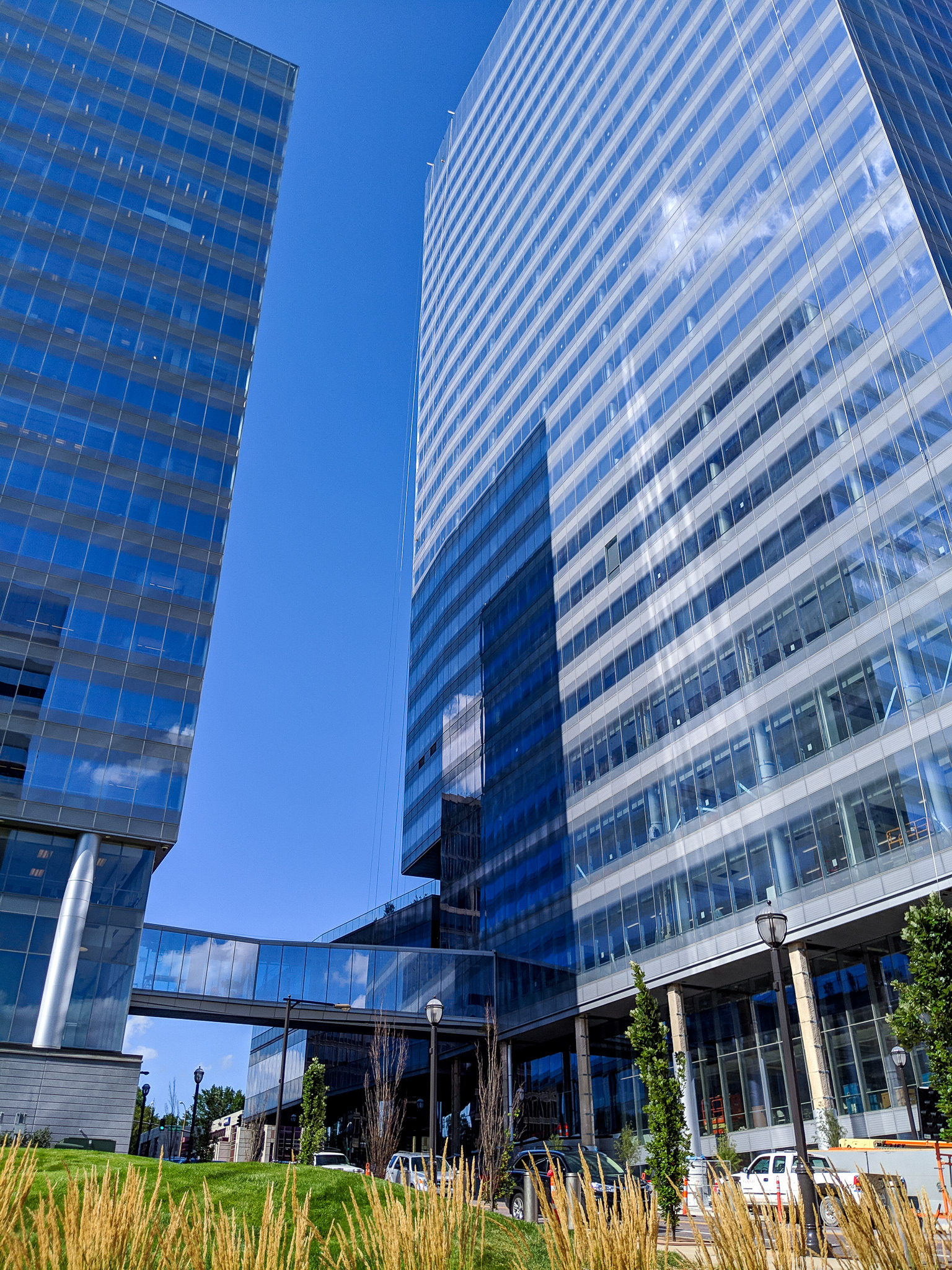

This high-rise 32-story steel tower has a central concrete shearwall core for lateral stability.  The tower contains a fitness center including a pool and a hanging mezzanine level. The pedestrian bridge spans 85 feet across Hanley Road.
Services Provided:
Analysis and design of  the cast-in-place portion of the parking structure and foundations.
Foundation design for the parking structure and office tower.
Design of a composite slab on metal deck on steel beam floor framing system.
Design of a built-up plated wide flange  box beam girder bridge.
Production of contract documents.
Construction Administration.
Modification of as-built conditions for tenant improvements.
Location: Clayton, MO
Size: 32-Stories on 3-Stories of below-grade parking, 311,048 Sq. Ft.
Completion:  3rd Quarter 2019
